Product name：Mixer Pump
Belonging classification：Concrete equipment
Whatsapp：+8615890058390
Mailbox：sales@superequipment.cn
Mixer Pump details
Technical parameters
Model | SBS30 | SBS40 | SBS30R | SBS40R |
Theoretical displacement (m3/h) | 24 | 30 | 32 | 40 |
Pressure (Mpa) | 10 | 8 | 10 | 8 |
Maximum conveying distance, vertical/horizontal (m) | 500/120 | 400/100 | 500/120 | 400/100 |
Dynamic form | Electric | Electric | Diesel | Diesel |
Power(KW) | 45 | 45 | 62.5 | 62.5 |
Rated speed(r/min) | 1480 | 1480 | 2000 | 2000 |
Main oil pump displacement(ml/min) | 112 | 140 | ||
Conveyor cylinder bore x stroke | 160x1000 | 180X1000 | 160x1000 | 180x1000 |
Oil injection cylinder bore X stroke | 100x1000 | 100X1000 | 100x1000 | 100x1000 |
Hopper volume(m3) | 0.4 | 0.4 | 0.4 | 0.4 |
Maximum aggregate diameter(mm) | 40/30/25 | 40/30/25 | 40/30/25 | 40/30/25 |
Inner diameter of outlet(mm) | 140 | 150 | 140 | 150 |
Mixer feed capacity(m3) | 0.56 | 0.56 | 0.56 | 0.56 |
Mixer output capacity(m3) | 0.45 | 0.45 | 0.45 | 0.45 |
Stirring motor power(KW) | 5.5 | 5.5 | / | / |
Increase motor power(KW) | 4.5 | 4.5 | / | / |
Length X width X height (mm) | 4200X2300X2600 | 4800x2300x2600 | 4800x2300x2600 | 4800x2300x2600 |
Main pump weight(kg) | 5500 | 5800 | 6000 | 6300 |
Technical parameters

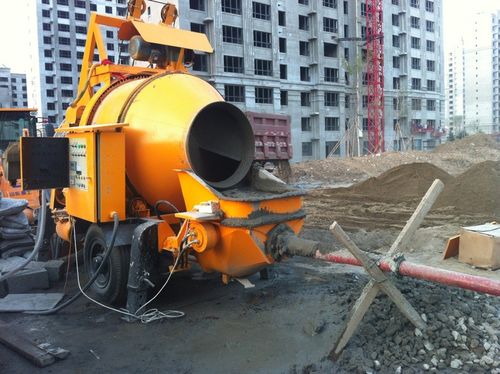

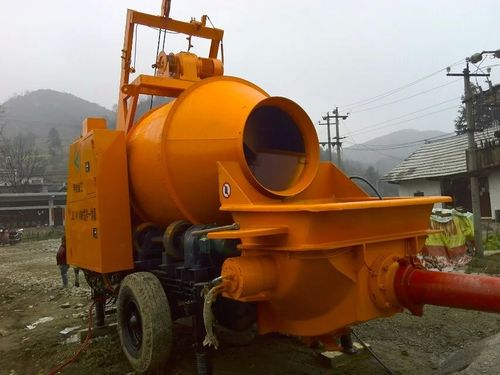

● This series of equipment integrates concrete mixing and conveying. It is convenient and flexible to move. It can convey large aggregate concrete and fine stone concrete or mortar. It is especially suitable for occasions where the amount of engineering is not large and frequent transfer is required. In remote areas with insufficient power, this series of products can be used with generator sets, or directly use diesel power.
● The pump adopts mature technology and process, the performance is stable and reliable.
● The electrical box adopts a special double-layer design, which has good sealing performance and is dust-proof and waterproof.
●.Electrical system adopts PLC control of well-known brands, ensure high integration and easy operation
● The mixer is made of wear-resistant alloy material , the solid material guarantee the long service life
● Using double-row tires, with large bearing capacity and good stability, especially suitable for walking on rough roads
